G1 Production System

Product Overview

Flexible and versatile system

For technical or sales assistance:shylender@skylifesciencessolutions.com

Overview & Details

Flexible and versatile system design for industrial production

FDA compliant subject to customer

certification, including control software

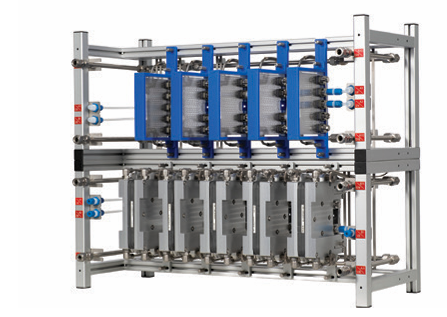

Compatible with any type of Corning G1

reactor, based on glass or SiC fluidic modules

Up to 6 liquid dosing lines and 1 gas line,

offering various materials of construction for chemical compatibility

Metal free downstream equipment
Appropriate thermostat integrated into HMI
Fully automated system
Mass transfer 100X better*
Heat transfer 1000X better*
Reaction volume 1000X lower*
Residence time distribution 50X better*

Technical Overview

Item Type (other limited options available on request) Reactor Dosing lines Thermostat Downstream equipment Electrical cabinet with automation Control system 1 G1 10 FM (SiC, Glass, or Hybrid

2 liquid dosing lines - Wetted materials:

stainless steel / gear pump

2 liquid dosing lines - Wetted materials:

Hastelloy / gear pump

2 liquid dosing lines - Wetted materials:

PFA & PTFE (metal free) / piston pump 1 gas line - MOC: stainless steel All being equipped of automated valves 2 thermostats - 20⁰C* / 200⁰C 2 thermostats 0⁰C* / 120⁰C

Lower temperature possible in option

Metal free back pressure regulator with automated control 2 automated valves to switch in between collecting vessels Based on Siemens automation devices Computer with human machine interface Software compliant with CFR 21 part 11 Data visualization through graphs and recording Configurable recipes
